Specifications
PartNumber: XENPAK-1XGE-LR
Device Type:Juniper XENPAK LR
Package: XENPAK
Data Rate: 10.3Gbps
Wavelength: 1310nm
Distance/Power Budget: 10km
Optical Components
LD: DFB
PD: PIN
Output Power: -6~-1dBm
Receiver Sensitivity: -15dBm
Power Supply Voltage: 1.2V/3.3V/5V
Connector: Dual SC
Fiber Type: SMF
Operating Temperature: 0~70 ÁC
DDMI: With
Application: 10GEthernet
Compatiblity: 100%Juniper Compatible

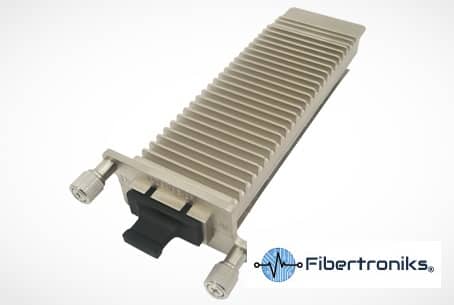

XENPAK LR XENPAK-1XGE-LR -Juniper XENPAK 10GBASE-LR, LC connector, 1310nm, 10km reach on single-mode fiber. We guarantee the XENPAK-1XGE-LR transceiver module to work in your system and all of our XENPAK-1XGE-LR transceiver modules come with a lifetime warranty.
The XENPAK-1XGE-LR is a Class 1 laser product. It fully complies with the multi-sourcing agreement (MSA) which enables it to work in all MSA compliant platforms. The XENPAK-1XGE-LR must be operatred within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
