Specifications
PartNumber: XENPAK-1XGE-ER
Device Type:Juniper XENPAKER
Package: XENPAK
Data Rate: 10.3Gbps
Wavelength: 1550nm
Distance/Power Budget: 40km
Optical Components
LD:EML
PD: PIN
Output Power: -1~4dBm
Receiver Sensitivity: -16.5dBm
Power Supply Voltage: 1.2V/3.3V/5V
Connector: Dual SC
Fiber Type: SMF
Operating Temperature: 0~70 ÁC
DDMI: With
Application: 10GEthernet
Compatiblity: 100%Juniper Compatible

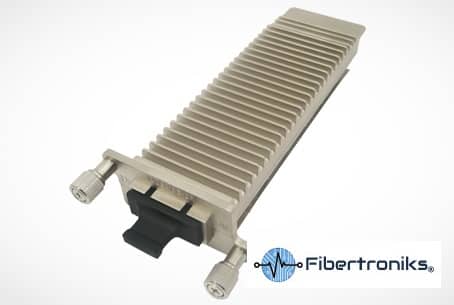

XENPAKER XENPAK-1XGE-ER -Juniper XENPAK 10GBASE-ER, LC connector, 1550nm, 40km reach on single-mode fiber.We guarantee the XENPAK-1XGE-ER transceiver module to work in your system and all of our XENPAK-1XGE-ER transceiver modules come with a lifetime warranty.
The XENPAK-1XGE-ER isA Class 1 laser product. It fully complies with the multi-sourcing agreement (MSA) which enables it to work in all MSA compliant platforms. The XENPAK-1XGE-ER must be operatred within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
