MP4LCDM4A2-xM

MP4LCDM4A2-xM

No. Parte OEM:  MP4LCDM4A2-xM
No. Parte FK:  MP4LCDM4A2-xM-FK

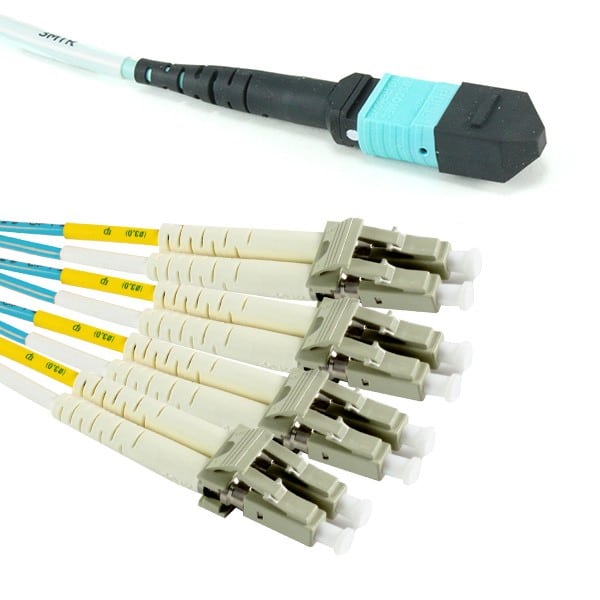

MTP-F to 4xLC Multimode OM4 50/125, OFNP Plenum, 2.0mm Breakout, Aqua- xM

The Fibertroniks Products FK-MP4LCDM4A2-xM fiber optic patch cords are ideal for short distance patching applications and are manufactured to be fully compatible and functional with all intended switching devices. These fiber optic cables have been tested for insertion loss and reflectance on all connectors and are built to exceed industry standards. They are constructed using Corning glass within UL certified OFNP (Plenum) rated jacket with Kevlar yarn, and are factory terminated resulting in uncompromised performance.

Categorías: ,

Descripción

Specifications

Performance:

Insertion Loss (max.): 0.60dB

Optical Return Loss: >20dB

Storage Temperature: -40°C +80°C

Operation Temperature: -20°C +70°C

Attenuation dB/km max.: 1.0

 Connector:

Connector Type (1): MTP/F

Connector Style(1): Single w/ Clip

Ferrule Type (1): Ceramic

Connector Type (2): LC x4

Connector Style (2): Duplex w/ Clip

Ferrule Type (2): Ceramic

Fiber:

Core Diameter: 50μm

Cladding Diameter: 125μm

Inner Strength Material: Kevlar

Jacket:

Jacket Size: 2mm

Jacket Style: Multifiber

Jacket Color: Aqua

Fire Rating: OFNP (Plenum)

Warranty:

Fibertroniks  Branded Cables- Lifetime Warranty
