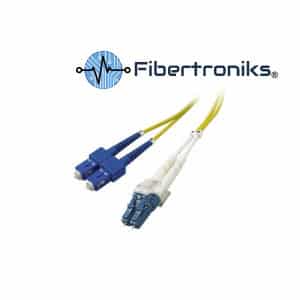

Description Multimode 62.5/125 Duplex Fiber Optic Patch Cable / OM1 FiberJumper Cord
Product Type Fiber Optic
Cable Type Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
Termination LC to SC Fiber Optic Cable
Connector 1 LC Duplex, 1.25mm form factor connector, ceramic ferrule.
Connector 2 SC Duplex, 2.5mm form factor connector, durable snap-in ceramic ferrule.
Optical Mode Type OM1 (Multimode) – 62.5 micron core / 125 micron cladding
Core / Cladding 62.5/125µm – 62.5 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
Core Material Corning Optical Fiber – Corning invented low-loss, high bandwidth, optical fiberAnd continues to deliver innovative glass solutions for fiber optic cables.
Mode Type Multimode – Used for high speed fiber optic Networking Applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
1GbEthernet Dist OM1 Distance is 300 MetersAt 850Nm / 600 MetersAt 1310Nm
10Gb Ethernet Dist OM1 Distance is 33 MetersAt 850Nm / 300 MetersAt 1310Nm
Bandwidth 160-200/500 MHz-km @850/1300Nm (OM1 – LAN fiber)
Strand Count 2 Fiber Strands
Jacket Color Orange – This is the standardJacket color for these multimode fiber Jumper cords / fiber patch cables.
Jacket Material PVC (polyvinyl chloride) – Fire-retardant, UV resistant, water resistantAnd very flexible for easy installation jacket OD 2.0mm Outer Diameter jacket
UL Rating: OFNR (Optical fiber,Nonconductive, riser) – Certified for use in riser, backbone, fiber only applications, riser rated for vertical runs compliance ROHS compliant length Options 3-Mtr
