LC-LC-Duplex10G-OM4MM

LC-LC-Duplex10G-OM4MM

No. Parte FK: LCLC50/125Dup10GOM4MM

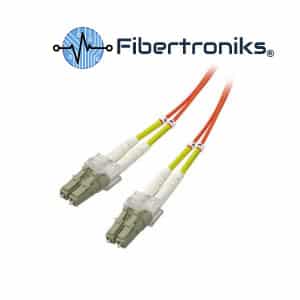

LC-LC 10G OM4 fiber optic patch cables provide 10 gigabit data transfer speeds in high bandwidth Applications 5 times faster than standard 50um fiber cable. Works with both VCSEL laserAnd LED sources. LC/LC fiber optic cables connect two components with fiber optic connectors.A light signal is transmitted so there is no outside electrical interference. Our LC/LC fiber optic patch cables are 100% optically tested for maximum performance. We have all lengths and connectors available.

Multimode LC/LC fiber optic patch cables send multiple light signals.They are 50/125µ. Common cconnectors are ST, LC, SCAnd FC. Our 50/125µ fiber cables can support gigabit ethernet up to 550 meters.

Categorías: , ,

Descripción

Specifications
Micron Multimode 850nm LO 50/125µ
Speed 10 Gigabit OM4
Connector UPC Polished LC-LC
Length 3 Meter
Durability 200 Mate / Demate Cycles (<0.3dB Change(perEIA-455-21A) Insertion Loss <0.75dB Maximum Return Loss >35dB Minimum
Cable Duplex Fiber Optic Jumper Patch
Jacket Lucent Technologies
Jacket Material PVC
Operating Temperature-4C to 80C
Packaging Bagged
Weight 0.15 Ibs.
Testing Optically Tested
Compliances TIA-492AAAC
Notes
Expands your bandwidth transmitting rates for audio, data and video applications to 10 gigabits. OM4 is backward compatible with OM3 fiber. OM4 offers over twice the modal bandwidth of OM3.
OM4 is capable of 10 Gigabit per second transmission rates to a distance of 550 Meters.
