JD106B

Descripción

Specifications
PartNumber:JD106B
Device Type: HP XENPAK SR
Package: XENPAK
Data Rate: 10.3Gbps
Wavelength: 850nm
Distance/Power Budget: 300m
Optical Components
LD: VCSEL
PD: PIN
Output Power: -6~-1dBm
Receiver Sensitivity: -10dBm
Power Supply Voltage: 1.2V/3.3V
Connector: Dual SC
Fiber Type: MMF
Operating Temperature: 0~70 ÁC
DDMI: With
Application:Ethernet/10G FC
Compatiblity: 100% HP Compatible

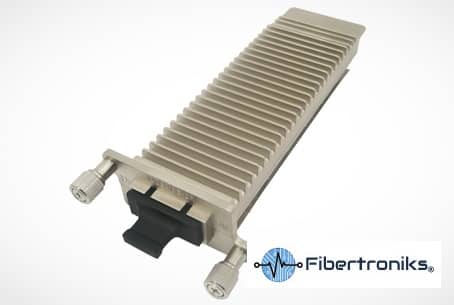

HP XENPAK SRJD106B – HP X130 10G XENPAK SC SR 850nm 300m Transceiver. We guarantee the JD106B transceiver module to work in your system and all of our JD106B transceiver modules come withA lifetime warranty.
TheJD106B isA Class 1 laser product. It fully complies with the multi-sourcingAgreement (MSA) whichEnables it to work inAll MSA compliant platforms. The JD106B must be operatred within the specified temperatureAnd voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
