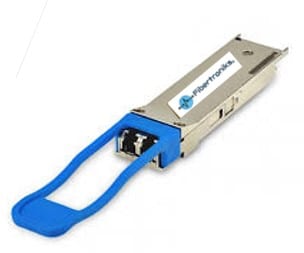

The Fibertroniks Products 02311GBW-FK is programmed to be fully compatible and functional with all intended Huawei switching devices. This QSFP optical transceiver is a parallel fiber optical module with four independent optical transmit and receive channels and is compliant with SFF-8665 and QSFP28 MSA standards. This module is designed for multimode fiber using MPO/MTP connection and operates at a nominal wavelength of 850nm up to 70m over OM3 and 100m over OM4 fiber.
Features:
- Up to 103.1 Gb/s aggregate bit rates
- Four parallel lane design
- Hot-pluggable QSFP28 footprint
- Uncooled 4x25Gb/s 850nm transmitter
- MPO/MTP connector
- Built-in digital diagnostic function
- Up to 70m over OM3, 100m over OM4 fiber
- Single power supply 3.3V
- Operating temperature range
- C-Temp: 0℃ to 70℃
Compliance:
- QSFP28 MSA
- MSA SFF-8665
- IEEE 802.3bm
- RoHS Compliant
Applications:
- 100GBASE-SR4 Ethernet
Warranty:
Fibertroniks Branded Optical Transceivers- Lifetime Warranty
