02310SSH-xM

02310SSH-xM

No. Parte OEM:  02310SSH-xM
No. Parte FK:  02310SSH-xM-FK

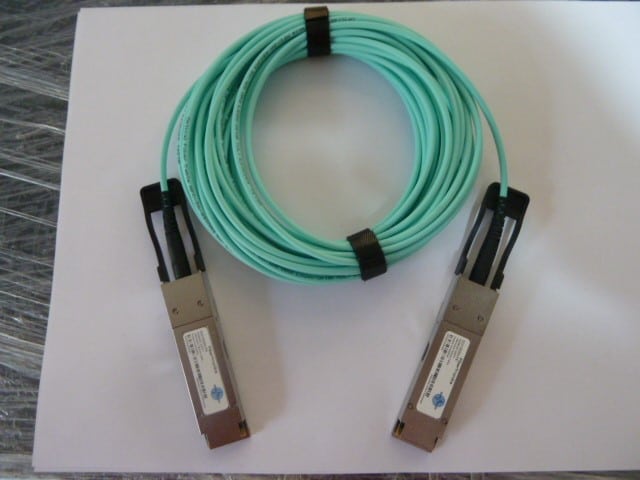

Active Optical Cable QSFP+ 40G Huawei Compatible- xM

The Fibertroniks Products 02310SSH-xM-FK active optical cables are designed to meet the QSFP+ 10GBS X 4 SFF-8436 specification and are programmed to be fully compatible and functional with all intended Huawei switching devices.  These cables use multimode fiber carrying a 850nm nominal wavelength.  The active optical QSFP+ cable is a light weight small diameter option for distances up to 100 meters.

Categorías: ,

Descripción

Features

      *  Up to 40 GBd bi-directional data links

  • Hot-pluggable QSFP+ footprint
  • 4 independent duplex 10Gbs channels
  • Up to 100 meters
  • 3mm fiber cable diameter
  • Less than 1W power consumption
  • Operating temperature range: 0℃ to 70℃

 Compliance

  • QSFP+ MSA
  • Infiniband QDR
  • RoHS Compliant



Applications

  • 40GBASE Ethernet
  • Infiniband
  • Fiber Channel

 Lengths from 1M – 100M

Warranty:

Fibertroniks  Branded Cables- Lifetime Warranty

 Part Numbers

Part Number Distance Description
02310SSH-1M-FK 1M Active Optical Cable QSFP+ 40G Huawei Compatible- 1M
02310SSH-2M-FK 2M Active Optical Cable QSFP+ 40G Huawei Compatible- 2M
02310SSH-3M-FK 3M Active Optical Cable QSFP+ 40G Huawei Compatible- 3M
02310SSH-5M-FK 5M Active Optical Cable QSFP+ 40G Huawei Compatible- 5M
02310SSH-7M-FK 7M Active Optical Cable QSFP+ 40G Huawei Compatible- 7M
02310SSH-10M-FK 10M Active Optical Cable QSFP+ 40G Huawei Compatible- 10M
02310SSH-15M-FK 15M Active Optical Cable QSFP+ 40G Huawei Compatible- 15M
02310SSH-20M-FK 20M Active Optical Cable QSFP+ 40G Huawei Compatible- 20M
02310SSH-25M-FK 25M Active Optical Cable QSFP+ 40G Huawei Compatible- 25M
02310SSH-30M-FK 30M Active Optical Cable QSFP+ 40G Huawei Compatible- 30M
02310SSH-50M-FK 50M Active Optical Cable QSFP+ 40G Huawei Compatible- 50M
02310SSH-75M-FK 75M Active Optical Cable QSFP+ 40G Huawei Compatible- 75M
02310SSH-100M-FK 100M Active Optical Cable QSFP+ 40G Huawei Compatible- 100M



General Specifications

Parameter Symbol Min Typ Max Unit Remarks
Bit Error Rate BER 10-12
Input Voltage VCC3 3.14 3.3 3.47 V
Maximum Voltage VMAX -0.5 4 V Electric Power Interface
Operating Temperature TOP 0 70 ℃ Case Temperature
Storage Temperature TSTO -40 85 ℃ Ambient Temperature

Link Distance

Parameter Fiber Type Distance Range (m)
40GBd OM3 Up to 100

AOC Electrical Input Requirements

Parameter Symbol Min Typ Max Unit Remarks
Data Rate Per Channel DR 0.001 10.5 GB/s Non Condensing
Differential Input Amplitude VIN_PP 150 1600 mV
Single Ended Voltage Tolerance V -0.3 3.8 V
AC Common Mode Voltage VCM 15 mV
Total Jitter TJ 0.28 UIp-p
Data Dependent Jitter DDJ 0.1 UIp-p
