Specifications
PartNumber: XENPAK-10GB-LR+
Device Type: Cisco XENPAK LR
Package: XENPAK
Data Rate: 10.3Gbps
Wavelength: 1310nm
Distance/Power Budget: 10km
Optical Components
LD: DFB
PD: PIN
Output Power: -6~-1dBm
Receiver Sensitivity: -15dBm
Power Supply Voltage: 1.2V/3.3V/5V
Connector: Dual SC
Fiber Type: SMF
Operating Temperature: 0~70 ÁC
DDMI: With
Application: 10 GigabitEthernet
Compatiblity: 100% Cisco Compatible

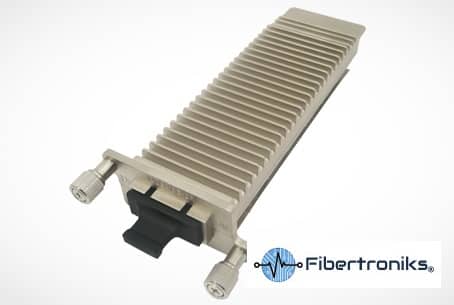

XENPAK LR XENPAK-10GB-LR+ – Cisco 10GBASE-LR XENPAK transceiver module for SMF, 1310-nm wavelength, 10km, SC duplex connector (supports DOM) . We guarantee the XENPAK-10GB-LR+ transceiver module to work in your system andll of our XENPAK-10GB-LR+ transceiver modules come with a lifetime warranty.
The XENPAK-10GB-LR+ is a Class 1 laser product. It fully complies with the multi-sourcing agreement (MSA) which enables it to work in all MSA compliant platforms. The XENPAK-10GB-LR+ must be operatred within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
