Descripción
Features
Smallest 10G form factor
Supports 10GBASEEthernet
Hot-swappable input/output device that plugs intoAnEthernet SFP+ port ofA Cisco switch
Provides flexibility of interface choice
Supports “pay-as-you-populate” model
Supports digital optical monitoring capability
Optical interoperability with 10GBASE XENPAK, 10GBASE X2,And 10GBASE XFP interfaces on the same link
Specifications
PartNumber: SFP-10G-LR
Device Type: Cisco SFP+ LR
Package: SFP+
Data Rate: 10.3Gbps
Wavelength: 1310nm
Distance/Power Budget: 10km
Optical Components
LD: DFB
PD: PIN
Output Power: -6~-0.5dBm
Receiver Sensitivity: -15dBm
Power Supply Voltage: 3.3V
Connector: Dual LC
Fiber Type: SMF
Operating Temperature: 0~70 ÁC
DDMI: With
Application: 10 GigabitEthernet
Compatiblity: 100% Cisco Compatible
SFP+ LR SFP-10G-LR – Cisco 10GBASE-LR SFP+ transceiver module for SMF, 1310-nm wavelength, 10km, LC duplex connector .. We guarantee the SFP-10G-LR transceiver module to work in your system and all of our SFP-10G-LR transceiver modules come with a lifetime warranty.
The SFP-10G-LR s a Class 1 laser product. It fully complies with the multi-sourcinga agreement (MSA) which enables it to work in al MSA compliant platforms. The SFP-10G-LR must be operatred within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.

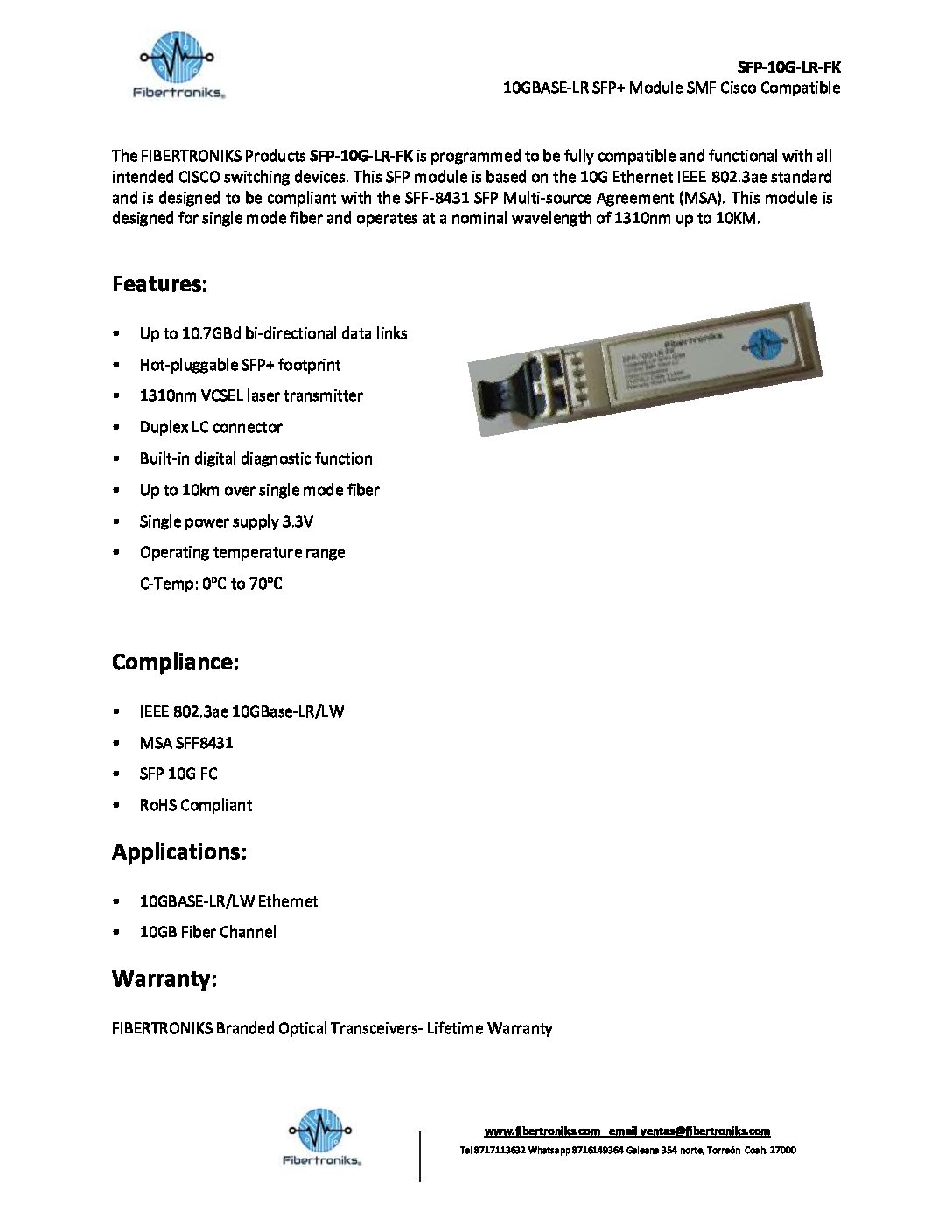

Ficha técnica ing-esp SFP-10G-LR-FK Spec Sheet
